The Lilliput A11 10.1 Inch 4K HDMI And SDI Monitor is a professional-grade field monitor designed for filmmakers and camera operators who require a larger display for precision monitoring. It features a 10.1-inch IPS panel with a native resolution of 1920×1200, ensuring a Full HD visual experience with a 16:10 aspect ratio. The screen offers a brightness of 320 cd/m2 and a high contrast ratio of 1000:1, which allows for clear viewing even in varied lighting conditions. Additionally, the monitor supports an expansive 175-degree viewing angle, making it easy for multiple crew members to view the image simultaneously without color shifts or distortion.
Connectivity is a primary strength of the Lilliput A11 10.1 Inch 4K HDMI And SDI Monitor, as it includes a 4K HDMI 1.4b input and loop output alongside a 3G-SDI input and loop output. This configuration allows the monitor to handle high-resolution 4K signals at 30Hz while facilitating a seamless signal flow to secondary monitors or recording devices. For added versatility in legacy environments, the unit also includes a VGA input. The physical design is robust, often featuring a metal housing for durability on set, and it includes both a 1/4-20 mounting thread and a 75mm VESA pattern for flexible mounting on cameras, rigs, or stands.
To assist with technical accuracy during shoots, the Lilliput A11 10.1 Inch 4K HDMI And SDI Monitor comes equipped with a comprehensive suite of software tools including focus peaking, false color, histograms, and exposure zebras. Users can customize their workflow using two assignable function buttons for quick access to their most-used monitoring features. Powering the device is highly flexible, supporting Sony L-series batteries via an included plate or external DC power ranging from 7V to 24V. This blend of high-resolution imaging, diverse connectivity, and essential software tools makes it a reliable asset for both production and post-production environments.
FEATURES:
– 10.1-inch monitor display
– 4K HDMI input
– 4K HDMI loop output
– 3G-SDI input
– 3G-SDI loop output
– 1920×1200 Full HD resolution
The Lilliput A11 10.1 Inch 4K HDMI And SDI Monitor is a professional grade field monitor designed for high quality video production and cinematography. It features a 10.1 inch IPS LCD panel with a native resolution of 1920×1200, delivering crisp and detailed imagery that exceeds standard high definition expectations. The display offers a brightness of 320 cd/m2 and a high contrast ratio of 1000:1, ensuring that visual content remains clear and vibrant even in various lighting conditions. With its wide 175 degree viewing angle, multiple crew members can monitor the frame simultaneously without experiencing significant color shift or loss of clarity.
– 10.1 inch large display
– 4K HDMI input and output
– 3G-SDI input and loop output
– 1920×1200 Full HD resolution
– Supports 4K signal monitoring
– Dual signal interface options
– Poor visibility in direct sunlight
– Low screen brightness for outdoors
– Lacks an automatic power saving mode
– Too bulky for many camera bags
– High latency causes noticeable image lag
– Difficult to use for manual focus
– Menu interface is not very intuitive
– Adapter plates can be hard to find
– Adds significant weight to camera rigs
– No touchscreen functionality for navigation
– Requires removing monitor between film sets
– Limited 4K support at 30 Hertz
The LILLIPUT A11 10.1 inch camera monitor offers a spacious 1920×1200 Full HD display with versatile connectivity through 4K HDMI and 3G-SDI input and loop output options, making it a capable tool for high-resolution signal monitoring. However, its practical utility is hindered by significant drawbacks including poor outdoor visibility due to low brightness, noticeable image lag that complicates manual focusing, and a bulky, heavy design that makes it difficult to transport or integrate into compact rigs. Furthermore, the device lacks intuitive features like a touchscreen or automatic power saving, is limited to 4K at 30 Hertz, and presents logistical challenges such as hard-to-find adapter plates and a menu interface that is not user-friendly. Read more…

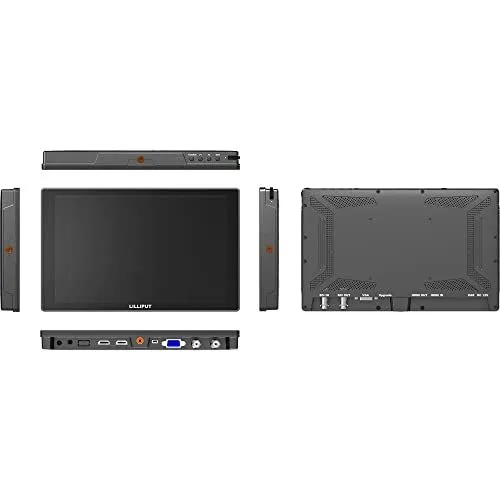

Lilliput Field Monitor Professional Overview
This image shows a professional Lilliput field monitor from several different angles. The main front view features a large black screen with thin bezels. The brand name Lilliput is visible at the bottom center of the display. Top and side views reveal various mounting points and physical control buttons. The bottom edge is packed with numerous connectivity ports. These include HDMI inputs and outputs along with a VGA port. You can also see BNC connectors for SDI signals on the bottom and back panels. The rear of the device has a textured metallic finish for heat dissipation. Four VESA mounting holes are positioned in the center of the back plate. The overall design is rugged and built for cinematography or broadcast use. This layout helps users understand the port placement and mounting options.
Camera Auxiliary Functions Overview
This image displays a promotional infographic for camera auxiliary functions. It highlights tools used for live streaming and multi camera productions. The top of the graphic features a row of eleven icons representing various features. These icons include multiview and color temperature and UMD. Other icons show level meters and histograms and exposure settings. The middle section contains three detailed panels. The first panel shows an audio level meter next to a person playing a guitar. The second panel illustrates a white histogram representing brightness levels across an image. The third panel demonstrates false color with a lighthouse image to indicate exposure levels. The bottom section includes three more panels for specific functions. One panel shows aspect markers and center markers on a landscape photo. Another panel features a ferris wheel to show how peaking highlights areas in focus. The final panel displays zebra stripes over a ferris wheel to identify overexposed areas. Small text descriptions explain each function at the bottom of the individual panels. The overall design is clean with a white background and clear visual examples.

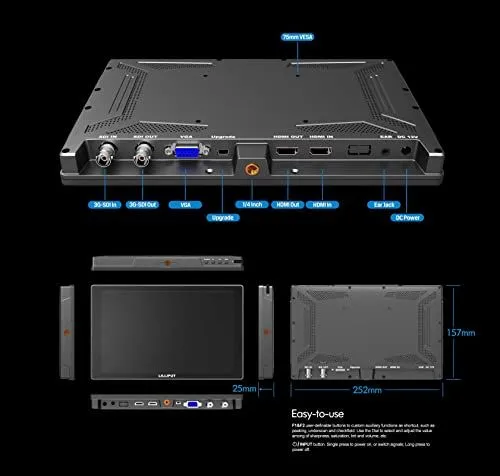

Lilliput Field Monitor Specifications and Ports
This image displays a professional Lilliput field monitor from multiple angles. The top section shows a detailed view of the connection panel. It includes 3G-SDI input and output ports. There is a VGA port and a USB upgrade port. It features HDMI input and output connections. A 3.5mm earphone jack and DC power input are visible. A 1/4 inch mounting thread sits in the center. The back of the monitor has a 75mm VESA mount pattern. The bottom section shows the front and side profiles. Dimensions are listed as 252mm wide and 157mm high. The monitor has a depth of 25mm. Text describes easy to use custom buttons and dial controls. The screen is framed by a black bezel with the Lilliput logo at the bottom. Small 1/4 inch threads are located on all four sides for mounting flexibility.

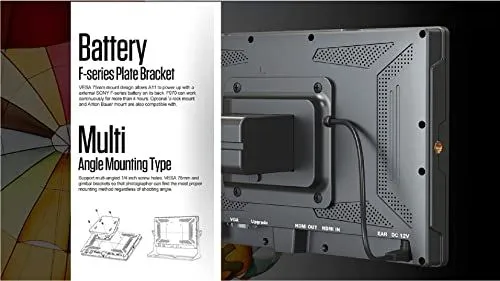

Key Features of the A11 External Monitor
The image displays a professional external camera monitor with its back panel exposed. The left side features a text overlay highlighting battery options and mounting types. It mentions compatibility with SONY F-series batteries and optional V-mount or Anton Bauer mounts. A large F970 battery can power the device for over four hours. The right side shows the physical hardware of the monitor. A black battery is currently attached to the center plate. Several ports are visible along the bottom edge including VGA and HDMI IN. An HDMI OUT and a DC 12V power input are also present. The monitor has a ventilated gray casing for heat management. Small technical diagrams at the bottom illustrate the VESA 75mm mounting system. A gold-colored screw hole on the side indicates support for 1/4 inch mounts. The background includes a colorful blurred image of a hot air balloon.

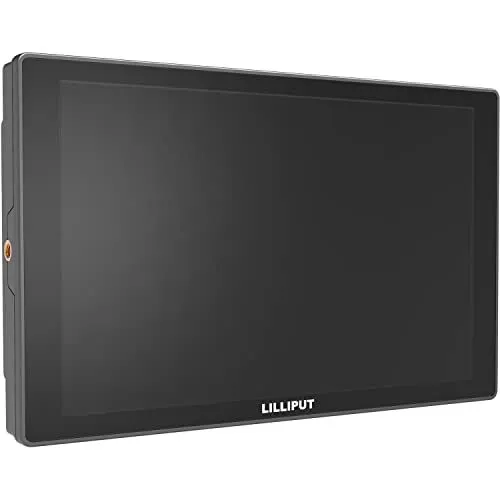

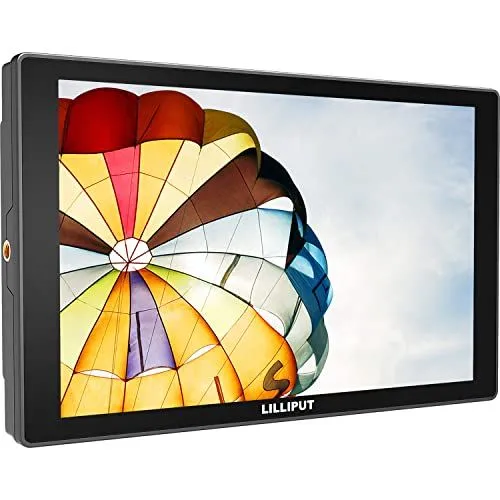

Lilliput Field Monitor
A black Lilliput field monitor is shown from a side angle. The device features a large rectangular screen with wide bezels. The brand name is printed in white at the bottom center of the frame. A small gold threaded mounting hole is visible on the left side of the chassis. The exterior casing has a matte finish. This monitor is designed for professional video production and camera monitoring. It rests against a plain white background. The screen surface is dark and reflective. The build appears sturdy and industrial. It has a slim profile relative to its screen size.

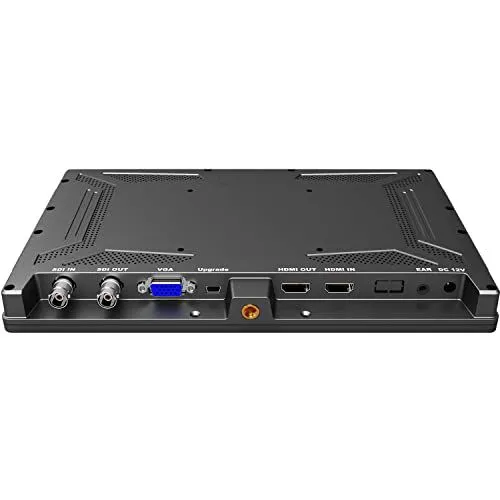

Professional Video Production Monitor Rear View
The image shows the back of a professional field monitor. It is a flat rectangular device made of dark gray metal or plastic. The back panel features several ventilation grilles with a triangular pattern. Multiple connection ports are visible along the bottom edge. These include two BNC connectors for SDI input and output. A blue VGA port is located near the center. There is a small micro USB port labeled for firmware upgrades. Two HDMI ports are present for video input and output. A headphone jack and a circular DC power input are on the right side. A copper-colored screw mount is positioned in the center of the bottom rail. Small screws hold the casing together at various points. The design appears rugged and intended for professional camera setups.

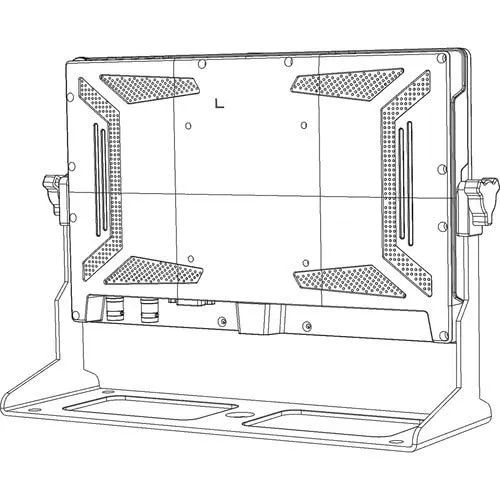

Industrial Monitoring Display and Support Bracket
The image shows a technical line drawing of an industrial monitor. It is mounted on a sturdy metal U-shaped stand. The rear of the monitor is visible in this perspective. Four ventilation areas with perforated patterns are located on the back panel. A series of mounting holes suggests a VESA compatible pattern in the center. Large adjustment knobs are present on both sides of the frame. These knobs allow the screen to tilt at different angles. Several connection ports are visible at the bottom of the unit. The base of the stand features two large rectangular cutouts. It also has small circular holes for securing the unit to a flat surface. The overall design appears rugged and functional for professional use. Fine lines define the geometric shapes of the casing and hardware.

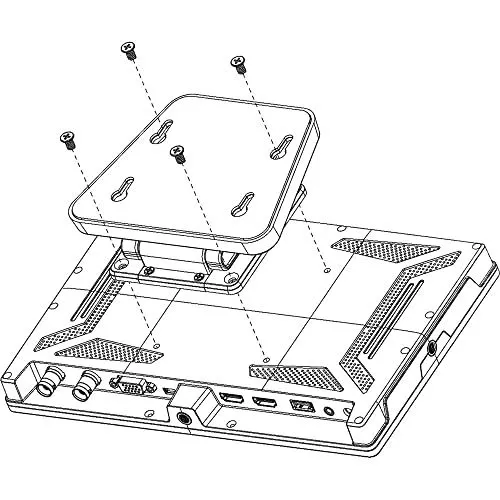

VESA Mount Assembly Diagram
An assembly drawing shows a monitor and a mounting plate. Four screws are positioned above the plate. Dashed lines indicate where the screws go into the monitor. The mounting plate has four keyhole slots. It is attached to a central hinge. The monitor has several ports on the bottom edge. These include BNC and HDMI connectors. The back of the monitor features textured ventilation areas. The components are shown in a line art style. This diagram helps users understand the installation process. All parts are clearly laid out for clarity.

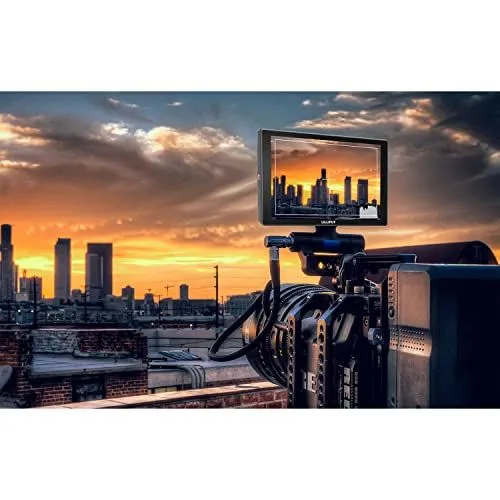

Professional Camera Rig at Sunset
A professional digital cinema camera is mounted on a rooftop. The camera is equipped with a large external monitor and a heavy-duty lens. A vibrant sunset illuminates the sky with shades of orange and purple. The monitor displays a clear view of the city skyline in the distance. Tall skyscrapers stand against the colorful horizon. The camera setup appears to be part of a high-end film production. Coiled cables and metal rigging components are visible on the camera body. The foreground shows the textured brick of the rooftop wall. Industrial structures and smaller buildings fill the middle ground. The lighting creates a dramatic and professional atmosphere for cinematography. Every detail of the camera gear is sharp and well-defined. The overall composition highlights the intersection of technology and natural beauty.

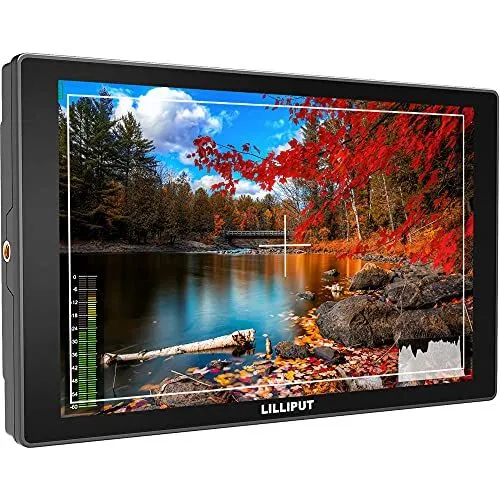

Lilliput Field Monitor with Landscape Display
The image shows a professional external field monitor from the brand Lilliput. It features a large rectangular screen with a black bezel. The display shows a high resolution landscape photo of a river and autumn trees. Several on screen overlays are visible for video production. These include white frame guides and a center crosshair. An audio level meter is located on the left side. A brightness histogram is visible in the bottom right corner. The monitor has a mounting point on the left side for rigging. This device is commonly used by filmmakers to check focus and exposure.
